Tuesday, June 28, 2016

Play Framework 2.5 and Vue sample CRUD single page application

In my previous post I shared a link to a sample application I had built using the Play framework. That application works and is fine but the one thing I wanted to change was to have a Javascript template framework on the front-end so that I can easily update portions of the webpage with AJAX request and response calls to and from the server. There are many different approaches to accomplish this; you can do it all with Javascript but there are frameworks and libraries available that make this sort of thing a lot easier and cleaner to do. I have used Javascript template engines like Handlebars or DustJs in the past and they have worked quite nicely. There are even more modern frameworks available now that go the extra mile and make things even simpler and more powerful. AngularJS comes to mind. I spent some time learning and seeing how I can use AngularJS for my Play application but in the end I opted to use Vue.js instead. Vue was a lot easier to learn and to get up and running with than AngularJS was and it works amazingly well.

I started by creating a default Play application and reused most of the business-side logic I had used in the previous version of the app. I then created a folder in the root of my project called 'vue' and I put all my Vue related files in there. I am using Play as a RESTful service and Vue as a client-side rendering framework. The only Play Scala template I have is the index.scala.html page which references the bundled javascript file and defines the root element for the Vue application. The only reason I have this index file within Play is to do with the Javascript routing provided by Play. Having said that I think in the long run I will move the index file into the Vue project in order to make use of Vue's hot-reload feature.

If you are interested in this sample application I have built you can clone / downloaded it from here.

Introduction

This application is used to showcase the Play framework as well as Vue.js while learning basic Spanish phrases. This application makes use of the following:

Installing

Running

  • Open a command terminal and change into the sample application root directory
  • Run activator:
    • activator run
  • Run webpack:
    • webpack --watch
  • Open the following link in a browser:
    • http://localhost:9000

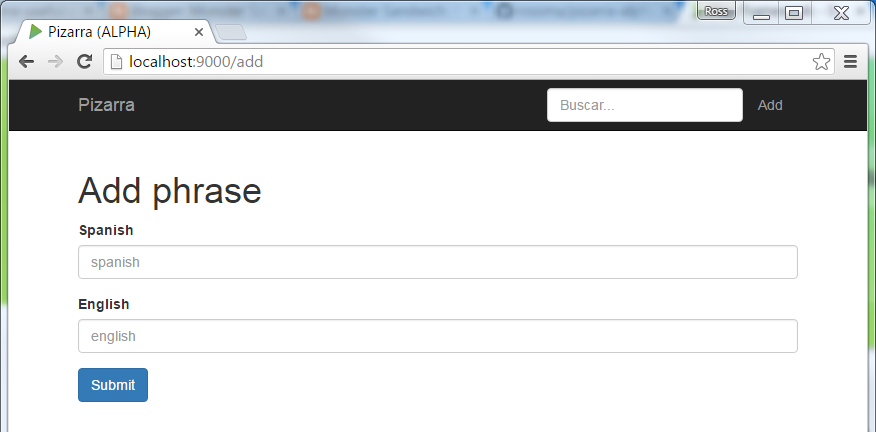

Screenshots







Monday, June 27, 2016

Play Framework 2.5 sample CRUD application

I have had an interest in the Play framework for a number of year now and I have built a few small applications using the framework. The Play framework has evolved over time and in order to keep up to date with the most recent changes it's useful to try and build your own application. I have built a very simple CRUD application for this purpose.

If you are interested in application you can clone / downloaded it from here.

Introduction

This application is used to showcase Play framework while learning basic Spanish phrases. This application makes use of the following:

Installing

Running

  • Open a command terminal and change into the sample application root directory
  • Run activator:
    • activator run

Screenshots






Monday, February 1, 2016

Useful commands to monitor and troubleshoot HornetQ in JBoss EAP 6

The JBoss Enterprise Application Platform (JBoss EAP) is a Java EE application server runtime platform used for building, deploying, and hosting Java applications and services. JBoss EAP 6 is Java EE 6 certified with Red Hat support.

HornetQ is an open source project to build a multi-protocol, embeddable, very high performance, clustered, asynchronous messaging system and is also developed by Red Hat. HornetQ is the Java Message Service (JMS) provider for JBoss EAP 6 and is configured as the Messaging Subsystem.

The following contains a collection of useful commands and steps in monitoring and troubleshooting HornetQ. Note that the commands below were run on a Windows machine with a default standalone setup of JBoss EAP with the messaging subsytem configured and a test queue created.

Before you continue if you are attempting to do this in a production environment then it is very important to backup your messaging data folders or anything else you may need.

Finding the message count of a queue

  • Open a command prompt and run the jboss-cli script from within the JBOSS_HOME bin directory:
    • %JBOSS_HOME%/bin/jboss-cli.bat -c
/subsystem=messaging/hornetq-server=default/jms-queue=testQueue/:count-messages
  • If the outcome was a success the result should contain how many messages are in the queue.

Listing the messages in a queue

  • Still connected to the JBoss command line interface run the following command:
/subsystem=messaging/hornetq-server=default/jms-queue=testQueue/:list-messages

Moving messages

  • You can move all messages from a one queue to another:
/subsystem=messaging/hornetq-server=default/jms-queue=testQueue/:move-messages(other-queue-name=destinationQueue)
  • You can move a message from one queue to another if you know the message id of the message you want to move. You should be able to get this from listing the message as described earlier:
/subsystem=messaging/hornetq-server=default/jms-queue=testQueue/:move-message(other-queue-name=destinationQueue,message-id=ID5e1b49b7-15a2-11e5-a905-89636a1272dc)

List prepared transactions

  • You can list prepared transaction on the HornetQ server by running the following command:
/subsystem=messaging/hornetq-server=default/:list-prepared-transactions

Commit prepared transactions

  • If you need to force commit a prepared transaction you can do so by providing the transaction-as-base-64 value found in the list-prepared-transaction command for the following command:
/subsystem=messaging/hornetq-server=default/:commit-prepared-transaction(transaction-as-base-64=AAAAAAAAAAAAAP__wADIWogIO3NWnRrMAADsLwAAAAIAAAAAAAAAAAAAAAAAAP__wADIWogIO3NWnRrMAADsFzEHAgIA)

Java utility applications

HornetQ has a number of Java utility applications that can be run in order to perform certain tasks, these classes can be found in the %JBOSS_HOME%\modules\system\layers\base\org\hornetq directory.

ExportJournal

  • Use this class to export the journal data. You can use it as a main class or through its native method exportJournal(String, String, String, int, int, String), example as main method:
java -cp %JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-commons-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-core-client-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-jms-client-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-jms-server-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-journal-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-server-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\jboss\logging\main\jboss-logging-3.1.2.GA-redhat-1.jar \
org.hornetq.core.journal.impl.ExportJournal %JBOSS_HOME%\standalone\data\messagingjournal hornetq-data hq 10485760 %JBOSS_HOME%\tmp\journalExport.dmp

XmlDataExporter

  • Read the journal, page, and large-message data from a stopped instance of HornetQ and save it in an XML format to a file, example:
java -cp %JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-commons-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-core-client-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-jms-client-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-jms-server-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-journal-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-server-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\jboss\logging\main\jboss-logging-3.1.2.GA-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\jboss\netty\main\netty-3.2.6.Final.jar \
org.hornetq.core.persistence.impl.journal.XmlDataExporter %JBOSS_HOME%/standalone/data/messagingbindings %JBOSS_HOME%/standalone/data/messagingjournal %JBOSS_HOME%/standalone/data/messagingpaging $JBOSS_HOME/standalone/data/messaginglargemessages > journal-export.xml

XmlDataImporter

  • Read XML output generate by the org.hornetq.core.persistence.impl.journal.XmlDataExporter class, create a core session, and send the messages to a running instance of HornetQ, example:
java -cp %JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-commons-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-core-client-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-jms-client-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-jms-server-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-journal-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-server-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\jboss\logging\main\jboss-logging-3.1.2.GA-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\jboss\netty\main\netty-3.2.6.Final.jar \
org.hornetq.core.persistence.impl.journal.XmlDataImporter journal-export.xml localhost 5445

PrintData

  • PrintData writes a human-readable interpretation of the contents of a HornetQ Journal, example:
java -cp %JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-commons-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-core-client-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-jms-client-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-jms-server-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-journal-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-server-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\jboss\logging\main\jboss-logging-3.1.2.GA-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\jboss\netty\main\netty-3.2.6.Final.jar \
org.hornetq.core.persistence.impl.journal.PrintData standalone/data/messagingbindings/ standalone/data/messagingjournal/ > printData.log

PrintPages

  • PrintPages writes a human-readable interpretation of the contents of a HornetQ Journal and its pages, example:
java -cp %JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-commons-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-core-client-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-jms-client-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-jms-server-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-journal-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\hornetq\main\hornetq-server-2.3.12.Final-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\jboss\logging\main\jboss-logging-3.1.2.GA-redhat-1.jar;%JBOSS_HOME%\modules\system\layers\base\org\jboss\netty\main\netty-3.2.6.Final.jar \
org.hornetq.core.paging.PrintPages standalone/data/messagingpaging/ standalone/data/messagingjournal/ > printPages.log

Thursday, January 28, 2016

Java client authentication for JBoss EAP over SSL

SSL Encryption for Web Server

Secure Sockets Layer (SSL) encrypts network traffic between two systems. Traffic between the two systems is encrypted using a two-way key, generated during the handshake phase of the connection and known only by those two systems.

In order for a browser to connect with JBoss EAP over SSL the following steps will need to be performed:
  • Create keystore containing public and private keys for the server
  • Configure a HTTPS connector in JBoss EAP

In order for a Java client application to authenticate with JBoss EAP over SSL the following steps will need to be performed:
  • Create keystores for the server and client
  • Configure a HTTPS connector in JBoss EAP
  • Include the SSL configuration in your client application

SSL Encryption Keys and Certificate

For secure exchange of the two-way encryption key, SSL makes use of Public Key Infrastructure (PKI), a method of encryption that utilizes a key pair. A key pair consists of two separate but matching cryptographic keys:

  • public key - shared with others and used to encrypt data
  • private key - kept secret and used to decrypt data that has been encrypted using the public key

When a client requests a secure connection, a handshake phase takes place before secure communication can begin. During the SSL handshake the server passes its public key to the client in the form of a certificate. The certificate contains:

  • the identity of the server (its URL)
  • the public key of the server
  • a digital signature that validates the certificate. You can purchase a certificate from a Certificate Authority (CA), or you can use a self-signed certificate. Self-signed certificates are not considered trustworthy but are appropriate for internal testing purposes.

The client then validates the certificate and makes a decision about whether the certificate is trusted or not.

If the certificate is trusted, the client generates the two-way encryption key for the SSL connection, encrypts it using the public key of the server, and sends it back to the server.

The server decrypts the two-way encryption key, using its private key, and further communication between the two machines over this connection is encrypted using the two-way encryption key.

Generate a keystore containing public and private keys.

 keytool -genkeypair -alias jbossweb -keyalg RSA -keysize 1024 -keystore server.keystore -validity 3650 -keypass jbosswebpass -storepass jbosswebpass
  • -genkeypair (previously named genkey)
    • Generates a key pair
  • -alias
    • alias name of the entry to process
  • -keyalg
    • key algorithm name
  • -keysize
    • key bit size
  • -keystore
    • keystore name
  • -keypass
    • key password
  • -storepass
    • keystore password

Verify the key

 keytool -list -keystore server.keystore

Generate a certificate signing request.

 keytool -certreq -keyalg RSA -alias jbossweb -keystore server.keystore -file certreq.csr

Test the newly generated certificate signing request.

 openssl req -in certreq.csr -noout -text

CA signed / self-signed certificate

  • Submit your certificate signing request to a Certificate Authority (CA) who can authenticate your certificate so that it is considered trustworthy by third-party clients. The CA supplies you with a signed certificate, and optionally with one or more intermediate certificates.
 keytool -import -trustcacerts -alias jbossweb -keystore server.keystore -file server.crt
  • If you only need certificate for testing or internal purposes, you can use a self-signed certificate. You can export one from the keystore you created in the first step above:
 keytool -export -alias jbossweb -keystore server.keystore -file server.crt

Create keystores for the Java client application

The following steps describe how to create keystores for the client and how to import these keystores into the truststores.

Export the server's public key

  • Export the server public key created in the above steps by running the following command:

 keytool -exportcert -alias jbossweb -keystore server.keystore -file server.cer -keypass jbosswebpass -storepass jbosswebpass
  • -exportcert (previously named export)
    • Exports certificate
  • -alias
    • alias name of the entry to process
  • -keystore
    • keystore name
  • -file
    • output file name
  • -keypass
    • key password
  • -storepass
    • keystore password

Create the client's keystore private/public key


  • Run the following command:

 keytool -genkeypair -alias clientalias -keyalg RSA -keysize 1024 -keystore client.keystore -keypass clientpass -storepass clientpass -validity 3650
  • -genkeypair (previously named genkey)
    • Generates a key pair
  • -alias
    • alias name of the entry to process
  • -keyalg
    • key algorithm name
  • -keysize
    • key bit size
  • -keystore
    • keystore name
  • -keypass
    • key password
  • -storepass
    • keystore password
  • -validity
    • validity number of days

Export the client's public key

  • Run the following command:

 keytool -exportcert -alias clientalias -file client.cer -keystore client.keystore -keypass clientpass -storepass clientpass
  • -exportcert (previously named export)
    • Exports certificate
  • -alias
    • alias name of the entry to process
  • -file
    • output file name
  • -keystore
    • keystore name
  • -keypass
    • key password
  • -storepass
    • keystore password

Server truststore

  • Add the client's public key to the truststore of the server


 keytool -importcert -trustcacerts -alias clientalias -file client.cer -keystore server.keystore -keypass jbosswebpass -storepass jbosswebpass
  • importcert (previously named import)
    • Imports a certificate or a certificate chain
  • -trustcacerts
    • trust certificates from cacerts
  • -alias
    • alias name of the entry to process
  • -file
    • input file name
  • -keystore
    • keystore name
  • -keypass
    • key password
  • -storepass
    • keystore password

Client truststore

  • Add the server's public key to the truststore of the client

 keytool -importcert -trustcacerts -alias jbossweb -file server.cer -keystore client.keystore -keypass clientpass -storepass clientpass
  • importcert (previously named import)
    • Imports a certificate or a certificate chain
  • -trustcacerts
    • trust certificates from cacerts
  • -alias
    • alias name of the entry to process
  • -file
    • input file name
  • -keystore
    • keystore name
  • -keypass
    • key password
  • -storepass
    • keystore password

More information on how to use the keytool command can be found here.

Configure a HTTPS connector in JBoss EAP 6


Create a secure connector, named HTTPS, which uses the https scheme, the https socket binding (which defaults to 8443), and is set to be secure. This can be done via CLI or by editing the standalone.xml configuration file directly, this is what an example HTTPS connector configuration looks like:

<subsystem xmlns="urn:jboss:domain:web:2.2" default-virtual-server="default-host" native="false">
  <connector name="HTTPS" protocol="HTTP/1.1" scheme="https" socket-binding="https" secure="true">
    <ssl name="https" key-alias="jbossweb" password="jbosswebpass" certificate-key-file="${jboss.server.config.dir}/keys/server.keystore" cipher-suite="RSA" protocol="TLSv1"/>
  </connector>
  <virtual-server name="default-host" enable-welcome-root="true">
    <alias name="localhost"/>
    <alias name="example.com"/>
  </virtual-server>
</subsystem>

Another example:

 <subsystem xmlns="urn:jboss:domain:web:2.2" default-virtual-server="default-host" native="false">
   <connector name="http" protocol="HTTP/1.1" scheme="http" socket-binding="http"/>
   <connector name="HTTPS" protocol="HTTP/1.1" scheme="https" socket-binding="https" secure="true">
     <ssl name="https"
       key-alias="jbossweb"
       password="jbosswebpass"
       certificate-key-file="${jboss.server.config.dir}/server.keystore"
       verify-client="true"
       ca-certificate-file="${jboss.server.config.dir}/server.keystore"/>
   </connector>

   <virtual-server name="default-host" enable-welcome-root="true">
     <alias name="localhost"/>
     <alias name="example.com"/>
   </virtual-server>
 </subsystem>
  • In the above example the keystore (certificate-key-file) is also used as the truststore ( ca-certificate-file).
  • The verify-client attribute is equivalent to Tomcats clientAuth attribute.
  • When using keytool to create keystores, JBoss will compare the value you enter in the name against the hostname and will complain if it does not match You can set the following JVM argument to have JBoss ignore the hostname:
  • -Dorg.jboss.security.ignoreHttpsHost=true

Include the SSL configuration in your client application

  • Within your standalone client application the following properties will need to be set to point to the client's keystore/truststore.
  • Adding these system properties will set the keystore/truststore for the whole JVM.

 System.setProperty("javax.net.ssl.keyStore", "/path/to/client.keystore");
 System.setProperty("javax.net.ssl.keyStorePassword", "clientpass");
 System.setProperty("javax.net.ssl.trustStore", "/path/to/client.keystore");
 System.setProperty("javax.net.ssl.trustStorePassword", "clientpass");
  • Once those properties are set you should be able to make the necessary HTTPS call (an example would be a webservice request over SSL).

Keystore Explorer

Keystore Explorer is an open source GUI replacement for the Java command-line utilities keytool and jarsigner. KeyStore Explorer presents their functionality, and more, via an intuitive graphical user interface.
